20000B/H Juice Bottle Filling Machine Juice Bottling Equipment With Motor Conveyor

Name: 20000BH Juice Bottle Filling Machine Juice Bottling Equipment With Motor Conveyor
Brand: Fill drink
Price: 51200 USD

20000B/H Juice Bottle Filling Machine Juice Bottling Equipment With Motor Conveyor Manufactures

Brand Name : Fill drink

Model Number : CGF40-40-12

Certification : CE ISO

Place of Origin : China

MOQ : 1

Price : 51200USD

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100 sets per month

Delivery Time : 30days

Packaging Details : Wood

Automatic grade : Automatic

Driven type : Electric

Condition : New

Dimension(l*w*h) : 3800*2200*2200MM

Type : Filling Machine

Application : Beverage

After-sales service provided : Engineers available to service machinery overseas

Packaging material : Wood

Voltage : Can be designed

Packaging type : Bottles

Weight : 6000kg

Power : 7.8KW

Warranty : 1 Year

Name : CE SGS ISO juice filling machine

Capacity : 20000BPH

Material : SS304

Product name : Complete Production Line for Bottled juice

Filling material : juice

Processing : Filling Machine

Contact Now

CGF40-40-12 Juice Filling Machine 20000BPH With Motor Conveyor

Product Description:

The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.The frequency changing technology is used to adjust the operation speed steplessly. The production capacity can be displayed digitally and can be adjusted conveniently.

Production Advantage

Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

Fill drink supply and manufacture the followings machines

Model	CGF40-40-12
Capacity (B/H)	20000
Bottle size	Neck :φ50-100mm:Height:150-320mm
Water Pressure	0.18-0.25Mpa
Washing Water consumption(kg/h)	4500
Washing station	18
Dripping station	15
Filling precision	＜+1MM
Air pressure	0.5Mpa
Air consumption	0.8m3/min
Power(kw)	7.8motor
Weight(kg)	6000
Dimension(LWH)	380022002200 mm

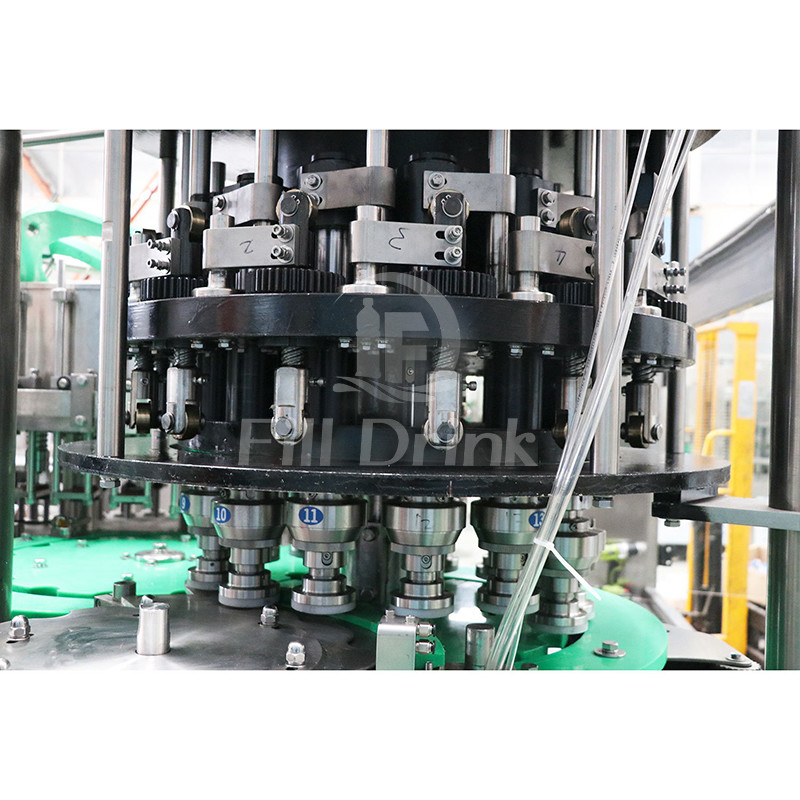

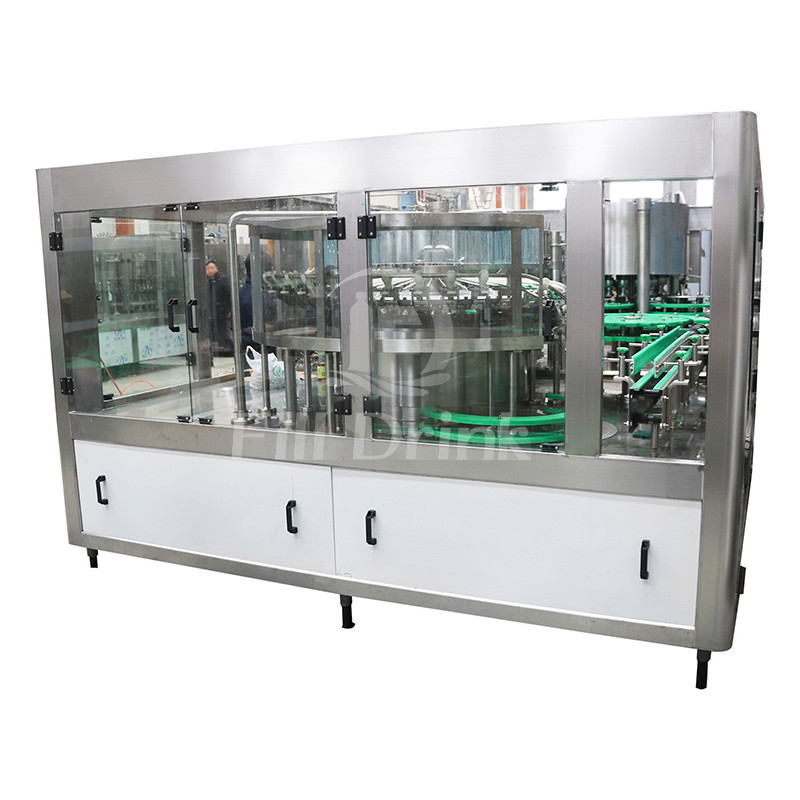

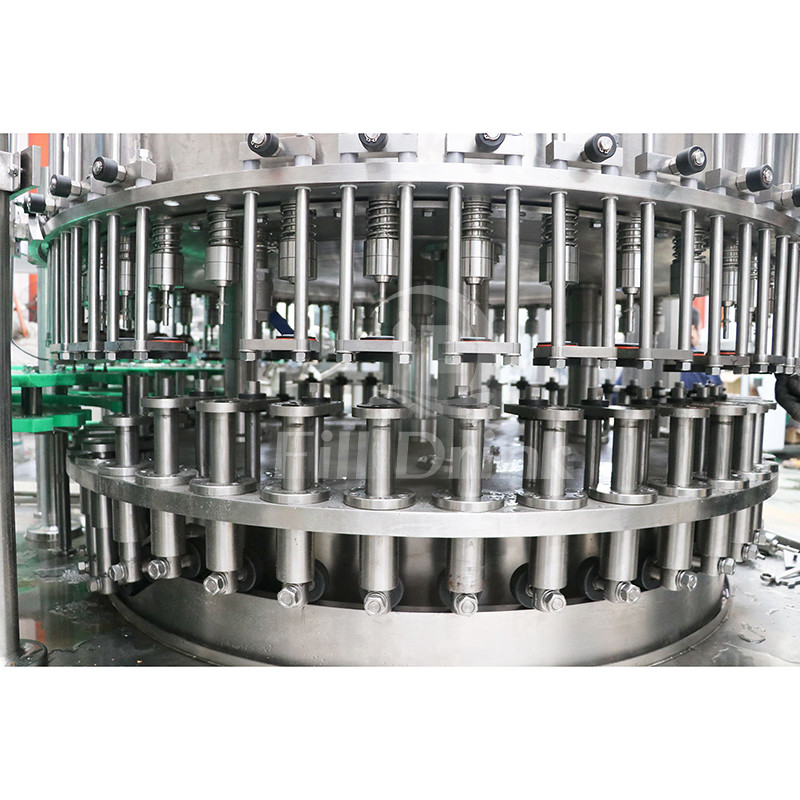

Product Photos:

20000B/H Juice Bottle Filling Machine Juice Bottling Equipment With Motor Conveyor

After sale service

1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.

2. We supply below necessary documents with the machine:

a. Machine layout

b. Electricity diagram

c. Machine certificate

d. General manual book/maintenance book

Customized service
1. we can design the machines according your requirements(material ,power,filling type,the kinds of the bottles, and so on).
2. At the same time we will give you our professional suggestion on factory design , bottle design , label design .... etc
