0-2L PET Bottle Juice Filling Machine 4000BPH Hydraulic Cylinder

Product Categories
ZhangJiaGang Filldrink machinery Co.,Ltd
Contact Now

0-2L PET Bottle Juice Filling Machine 4000BPH Hydraulic Cylinder

  • 1
  • 2
  • 3

Brand Name : Fill drink

Model Number : CGF12-12-4

Certification : CE ISO

Place of Origin : China

MOQ : 1

Price : 15400 USD

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100 sets per month

Delivery Time : 30days

Packaging Details : Wood

Automatic grade : Automatic

Driven type : Electric

Condition : New

Type : Filling Machine

Application : Beverage

After-sales service provided : Engineers available to service machinery overseas

Packaging material : Wood

Voltage : Can be designed

Packaging type : Bottles

Weight : 3500kg

Power : 4KW

Warranty : 1 Year

Name : CE SGS ISO juice filling machine

Capacity : 4000BPH

Material : SS304

Product name : Complete Production Line for Bottled juice

Filling material : juice

Processing : Filling Machine

Contact Now

0-2L PET Bottle Juice System Unit With Hydraulic Cylinder​

Product Description:

CGF series juice filling machine is mainly used in the beverage filling production line. The machine combines washing, filling and capping in one working table, suitable for filling juice, tea beverage. This juice bottle filling machine could fill the juice with fruit pulp. The bottle neck hanging technology makes the process of changing bottles easily by only adopting the height of conveyor chain.

Production Advantage

  • Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
  • Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
  • The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
  • High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
  • Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

Fill drink supply and manufacture the followings machines

Model CGF12-12-4
Capacity (B/H) 4000
Bottle size Neck :φ50-100mm:Height:150-320mm
Water Pressure 0.18-0.25Mpa
Washing Water consumption(kg/h) 1000
Washing station 12
Dripping station 2-2-2
Filling precision ＜+1MM
Air pressure 0.5Mpa
Air consumption 0.3m3/min
Power(kw) 4motor
Weight(kg) 3500
Dimension(L*W*H) 2350*1850*2450 mm

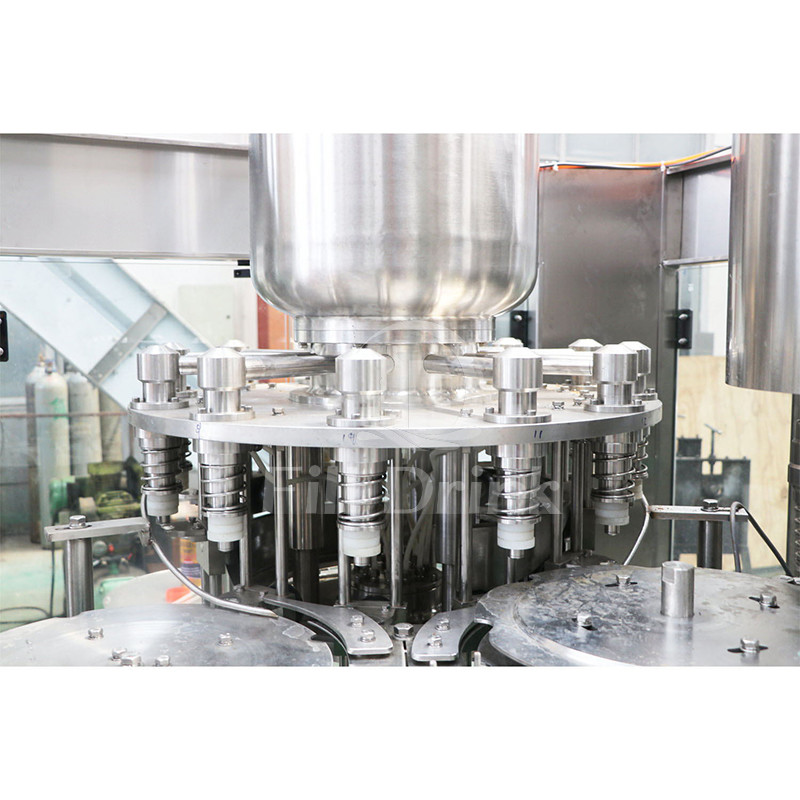

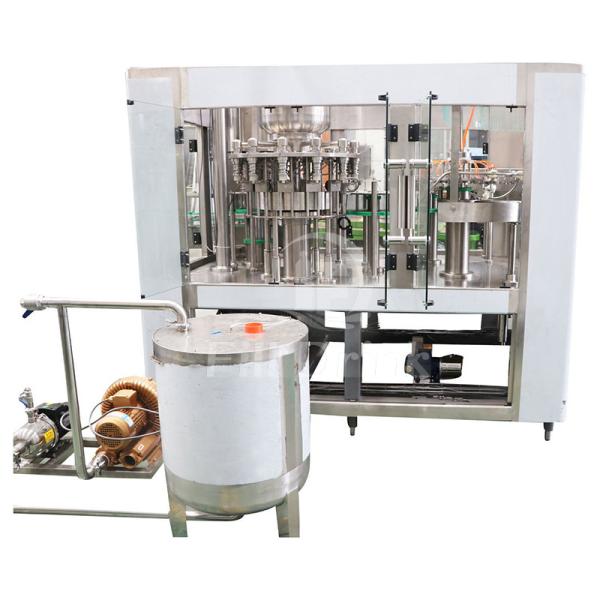

Product Photos:

0-2L PET Bottle Juice Filling Machine 4000BPH Hydraulic Cylinder

0-2L PET Bottle Juice Filling Machine 4000BPH Hydraulic Cylinder

0-2L PET Bottle Juice Filling Machine 4000BPH Hydraulic Cylinder

After sale service

1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.

2. We supply below necessary documents with the machine:

a. Machine layout

b. Electricity diagram

c. Machine certificate

d. General manual book/maintenance book
